N9039A EMI測量接收機

提供N9039A EMI測量接收機一站式綜合服務(wù)，專業(yè)高效！

N9039A EMI測量接收機

主要特性與技術(shù)指標

·Performance

·8.5 dBuV radiated bands sensitivity (120 kHz RBW, 10dB Atten) (typical)

·±1.2 dB Absolute amplitude accuracy

·1.2:1 input VSWR

·+9 dBm TOI (typical)


Features

·RF preselection 9 kHz to 1 GHz with N9039A for CISPR 16-1-1 Compliance

·Dual Window display for a closer look

·CISPR bandwidths and detectors

·Transducer factor corrections and limit lines with margins

Additional Receiver Enhancements

·Transient protection in filter mode

·RF Preselector gain and step attenuation in 2.5 dB steps

·Filter alignment using external signal source


描述

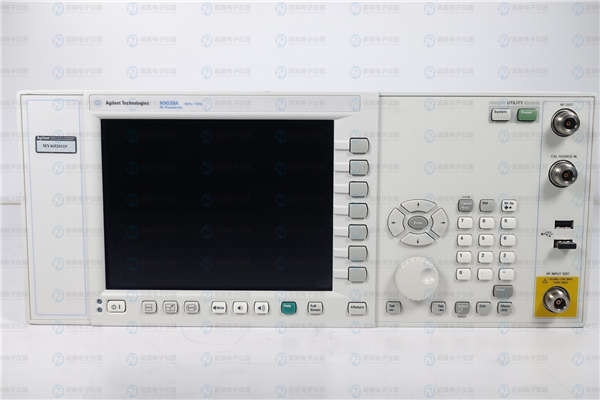

The EMI measurement receiver consists of an E4440xA Series PSA with Option 239, N9039A RF preselector and a signal source for filter alignment. A disk is provided with regulatory limit lines for most of the agencies and typical correction factors for a wide variety of transducers. The EMI measurement receiver is CISPR 16-1-1 2006 compliant.
