最大頻率

8.5 GHz

動態范圍

127 dB

輸出功率

13 dBm

軌跡噪聲

0.002 dBrms

內置端口數量

2 或 4 端口

諧波

-60 dBc

本底噪聲

-110 dBm

掃描速度最高可達 201 個點

6 ms

網絡分析儀系列

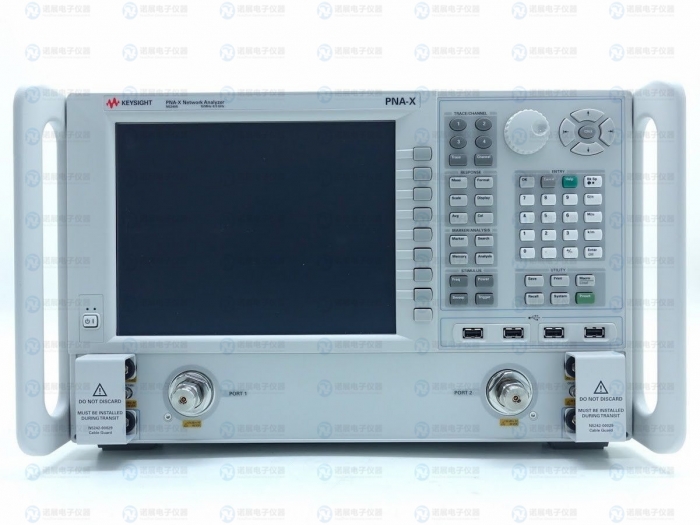

PNA-X 最先進和最靈活的

應用

S 參數

本底噪聲

增益壓縮

X 參數

平衡測量

脈沖射頻

IMD

元器件

天線

混頻器/變頻器

放大器

臺式

 是

N5249A-551

N-port calibrated measurements

N5249A-008

Pulsed-RF measurements

N5249A-010

Time-domain measurements

N5249A-028

Noise figure measurements using standard receivers

N5249A-080

Frequency offset measurements

N5249A-082

Scalar calibrated converter measurements

N5249A-083

Vector and scalar calibrated converter measurements

N5249A-084

Embedded LO measurements

N5249A-086

Gain compression application

N5249A-087

Intermodulation distortion measurements

N5249A-088

Source phase control

N5249A-118

Fast CW mode

N5249A-460

Integrated true-mode stimulus application

N5249A-510

Nonlinear component characterization, full frequency range

N5249A-514

Nonlinear X-Parameters

N5249A-518

Nonlinear Pulse Envelope Domain

N5249A-520

Arbitrary load impedance X-parameters

N5249A-089

Differential and I/Q devices application

N5249A-007

Automatic Fixture Removal

N5249A-015

Dynamic Uncertainty for S-Parameter Measurements

N5249A-090

Spectrum Analyzer

N5249A-110

Active Hot Parameters, fixed perpetual license

N5249A-111

Active Hot Parameters, restricted to 50 GHz, fixed perpetual license

N5249A-020

Add IF inputs

N5249A-021

Add pulse modulator to internal first source

N5249A-022

Add pulse modulator to internal second source

N5249A-025

Add four internal pulse generators

N5249A-029

Fully-corrected noise-figure measurements to 8.5 GHz

N5249A-219

Add extended power range and bias-tees to 2 port analyzer

N5249A-224

Add internal second source, combiner and mechanical switches to 2-port analyzer

N5249A-419

Add extended power range and bias-tees to 4 port analyzer

N5249A-423

Add internal combiner and mechanical switches to 4-port analyzer

N5249A-200

2 ports, single source

N5249A-400

4 ports, dual source
